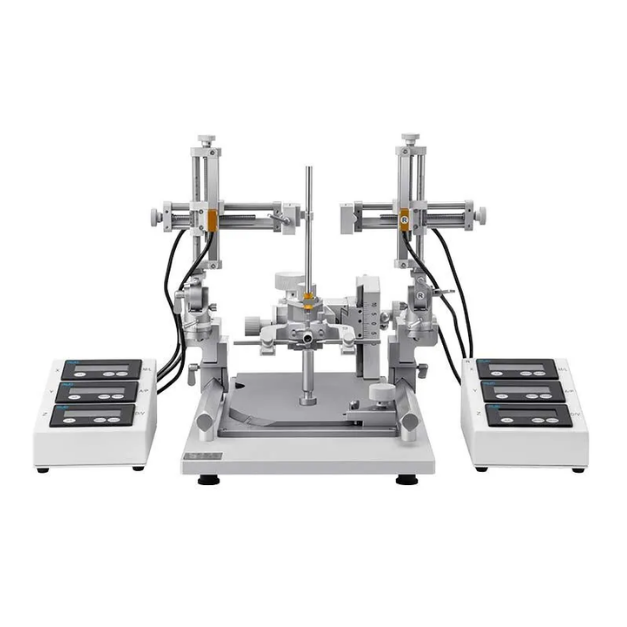

69100 Rotational Digital Stereotaxic Frame for Mice and Rat
The mouse head can be easily rotated flexibility so as to adjust the level of the skull. The accuracy of mediolateral rotation perfectly solves the bleeding problem when you inject through the venous sinus. Alignment Indicator can feedback whether the height of the animal’s head is horizontal. Centering Scope helps find Bregma and Lambda points. And you don’t need to set up Bregma repeatedly.
WhatsappOverview
Features
- Fitted with a sagittal positioning plate design, To minimize the levelness, inclination and alignment of the skull.
- Apparatus improves experiment efficiency, and the fixation process in animals is not repeated.
- More detailed five-dimensional space positioning can meet the needs of other sites.
- The operation arm has been tested by the motor for 100,000 times, which makes it more durable.

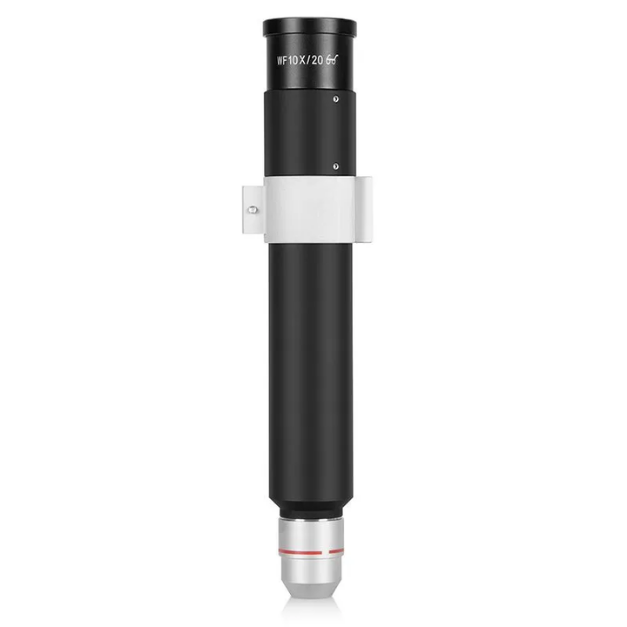

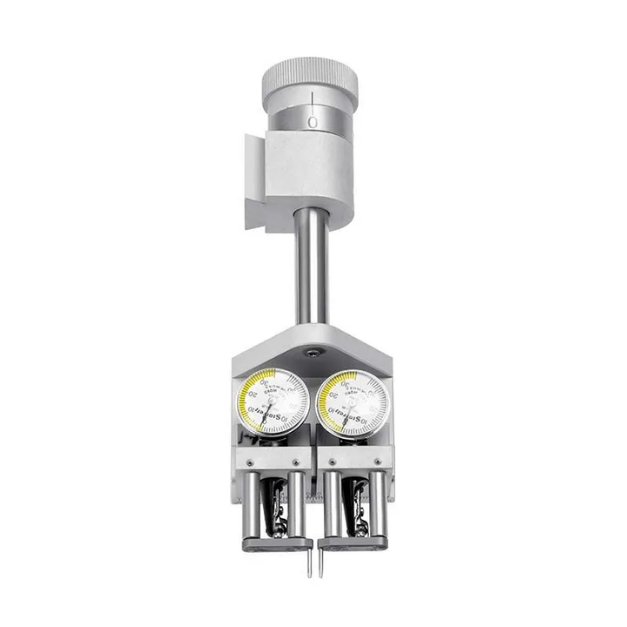

- With 40X Central Magnifier and Alignment Indicator, the skull flattening speed is faster and the brain area positioning accuracy is higher.
- Can be combined with inhalation anesthesia machine, animal mortality is low, the risk of surgery is small.
Technical Specification
| Item | Description |
| Tri-axial displacement Range in Sagittal plate (X, Y, Z axis) | 30mm |
| left and right rotation Angle adjustment range in Sagittal plate | ±30° |
| Swing the Angle up and down to adjust the range in Sagittal plate | ±10° |
| horizontal Angle adjustment range in Center floor | ±10° |
| Displacement distance of operating arm (X, Y, Z axis) | 80mm |
| Plate size | 400mm X 325mm |
| The mirror is still served at magnification | 40X |
| Alignment Indicator resolution | 0.01mm |
Available Mode
| Model | Product Description | Remarks |
| 69108 | Rotational Digital Stereotaxic for Mouse, SGL.M, 69110, 69113, 69114, 69133, 69137 | Standard configuration, contains 69110 Mouse Anesthesia Adaptor with Tubing, 69113 15° Angle Adaptor, 69114 60°Ear Bars for Mouse, 69133 40X Central Magnifier and 69137 Alignment Indicator. |
| 69118 | Rotational Digital Stereotaxic for Mouse, Dual M, 69110, 69113, 69114, 69133, 69137 | |
| 69109 | Rotational Digital Stereotaxic for Rat, SGL.M, 69112, 69113, 69116, 69133, 69137 | Standard configuration, contains 69112 Rat Anesthesia Adaptor with Tubing, 69113 15° Angle Adaptor, 69116 18° EarBars for Rat, 69133 40X Central Magnifier and 69137 Alignment Indicator. |
| 69119 | Rotational Digital Stereotaxic for Rat, Dual M, 69112, 69113, 69116, 69133, 69137 | |

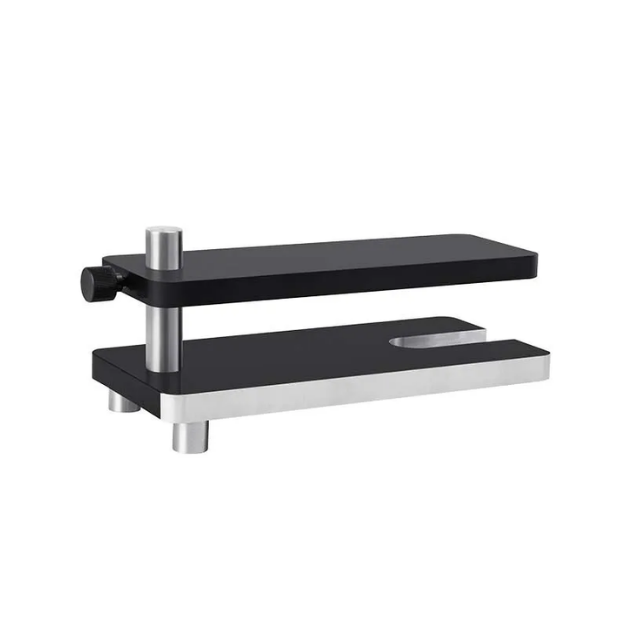

| 69136 | Operating Platform for Stereotaxic | |
| 69110 | Mouse Anesthesia Adaptor with Tubing(<30g) | 69108, 69118 contains. |
| 69111 | Mouse Anesthesia Adaptor with Tubing(30～70g) | Not included in standard configuration, optional according to experimental needs. |
| 69112 | Rat Anesthesia Adaptor with Tubing(<300g) | 69109, 69119 contains. |
| 69114 | 60° Ear bars for Mouse | 69108, 69118 contains. |
| 69116 | 18° Ear bars for Rat | 69109, 69119 contains. |
| 69120 | 3-axis Digital Manipulator, Left Hand | 69108, 69118, 69109, 69119 contains. |
| 69121 | 3-axis Digital Manipulator, Right Hand | 69118, 69119 contains. |
| 69207 | Attachment for Rotational Digital Stereotaxic Holder |
References
1. Yang Y, Cui Y, Sang K, Dong Y, Ni Z, Ma S, Hu H. blocks bursting in the lateral habenula to rapidly relieve depression. Nature. 2018 Feb 14;554(7692):317-322.
2. Cui Y, Yang Y, Ni Z, Dong Y, Cai G, Foncelle A, Ma S, Sang K, Tang S, Li Y, Shen Y, Berry H, Wu S, Hu H. Astroglial Kir4.1 in the lateral habenula drives neuronal bursts in depression. Nature. 2018 Feb 14;554(7692):323-327.
3. Zhou H, Xiong GJ, Jing L, Song NN, Pu DL, Tang X, He XB, Xu FQ, Huang JF, Li LJ, Richter-Levin G, Mao RR, Zhou QX, Ding YQ, Xu L. The interhemispheric CA1 circuit governs rapid generalisation but not fear memory. Nat Commun. 2017 Dec 19;8(1):2190.
4. Huang L, Yuan T, Tan M, Xi Y, Hu Y, Tao Q, Zhao Z, Zheng J, Han Y, Xu F, Luo M, Sollars PJ, Pu M, Pickard GE, So KF, Ren C. A retinoraphe projection regulates serotonergic activity and looming-evoked defensive behaviour. Nat Commun. 2017 Mar 31;8:14908.
5. Liu Y, Lai S, Ma W, Ke W, Zhang C, Liu S, Zhang Y, Pei F, Li S, Yi M, Shu Y, Shang Y, Liang J, Huang Z. CDYL suppresses epileptogenesis in mice through repression of axonal Nav1.6 sodium channel expression. Nat Commun. 2017 Aug 25;8(1):355.
6. Wang GQ, Cen C, Li C, Cao S, Wang N, Zhou Z, Liu XM, Xu Y, Tian NX, Zhang Y, Wang J, Wang LP, Wang Y. Deactivation of excitatory neurons in the prelimbic cortex via Cdk5 promotes pain sensation and anxiety. Nat Commun. 2015 Jul 16;6:7660.
7. Li WG, Liu MG, Deng S, Liu YM, Shang L, Ding J, Hsu TT, Jiang Q, Li Y, Li F, Zhu MX, Xu TL. ASIC1a regulates insular long-term depression and is required for the extinction of conditioned taste aversion. Nat Commun. 2016 Dec 7;7:13770.
8. Hao X, Gu H, Chen C, Huang D, Zhao Y, Xie L, Zou Y, Shu HS, Zhang Y, He X, Lai X, Zhang X, Zhou BO, Zhang CC, Chen GQ, Yu Z, Yang Y, Zheng J. Metabolic Imaging Reveals a Unique Preference of Symmetric Cell Division and Homing of Leukemia-Initiating Cells in an Endosteal Niche. Cell Metab. 2019 Apr 2;29(4):950-965.
9. Diao Y, Cui L, Chen Y, Burbridge TJ, Han W, Wirth B, Sestan N, Crair MC, Zhang J. Reciprocal Connections Between Cortex and Thalamus Contribute to Retinal Axon Targeting to Dorsal Lateral Geniculate Nucleus. Cereb Cortex. 2018 Apr 1;28(4):1168-1182.
10. Chen X, Guo Y, Feng J, Liao Z, Li X, Wang H, Li X, He J. Encoding and retrieval of artificial visuoauditory memory traces in the auditory cortex requires the entorhinal cortex. J Neurosci. 2013 Jun 12;33(24):9963-74.
