Eye Showers / Emergency Showers

The B-SAFETY body safety showers of the ClassicLine series are made of high-quality materials and are just as suitable for use in laboratories and research as they are for rough use in industry. B-SAFETY’s green chemical-resistant polyester powder coating has proven itself in many aggressive environments and is resistant to many acids and alkalis.

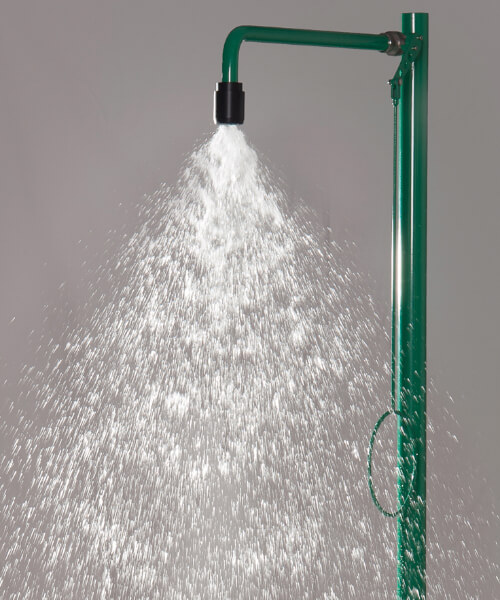

The body safety showers are equipped with the B-SAFETY high-performance shower head, which not only meets the specifications of ANSI Z358.1 and EN 15154, but is also self-draining, largely free of calcification-and maintenance, and very robust and corrosion-resistant. The limited, uniform and above all soft water jet is optimized for rinsing off chemicals on the skin.



Technical Description

• Including top and bottom water inlet 1 ¼” female for installation in circulation lines, plug 1 ¼” of stainless steel
• Base plate with 4 mounting holes of stainless steel, chemical resistant green powder coated, diameter 200 mm
• Stand pipe 1 ¼” of stainless steel three-part, chemical resistant green powder coated, with top and bottom water inlet 1 ¼” female, total height 2330 mm
• Connection piece of stainless steel, for easy installation and alignment of the shower
• Ball valve ¾” of brass, with quick connect system and pull rod actuation, DIN-DVGW tested and certificated
• Pull rod with ring handle of stainless steel, chemical resistant green powder coated, length 700 mm
• Wall shower arm ¾“ of stainless steel, chemical resistant green powder coated, projection 630 mm
• Integrated automatic flow regulation 50 l/min. for a spray pattern acc. to the norms at a specified operating range of 1.5 to 3 bar dynamic water pressure
• High-performance shower head of chemical resistant plastics, black, with improved spray pattern, corrosion resistant, largely calcification- and maintenance-free, very robust, self-draining
• Sign for body safety shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 150 x 150 mm, viewing distance 15 metre
• Integrated ClassicLine safety eye shower with bowl, mounting height 970 mm, orientation of eye shower freely selectable on site
• Connection pipe of stainless steel for easy installation and alignment of the shower, chemical resistant green powder coated
• Ball valve ½” of stainless steel, with PUSH-lever actuation, DIN-DVGW tested and certificated
• Big push plate made of steel, chemical resistant green powder coated, length 240 mm, with large signal “PUSH”, luminescent according to DIN 67510
• Integrated flow regulation 14 litre / minute for a standard-compliant jet pattern at a specified working range of 2.5 to 5 bar flow pressure
• High-performance spray heads for large-scale dispersion of water, with plastic spray plate, largely free of calcification, with rubber sleeves and sealed dust caps with folding mechanism, mounted over distributor fork
• Bowl made of plastic, green, diameter 275 mm, water outlet 1 ¼” male
• Sign for eye shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 100 x 100 mm, viewing distance 10 metre
• According to BGI/GUV-I 850-0, DIN 1988 and EN 1717
• According to ANSI Z358.1-2014, EN 15154-1:2006, EN 15154-2:2006 and EN 15154-5:2019
• DIN-DVGW tested and certificated
