Fuel Cell Membrance Coating System

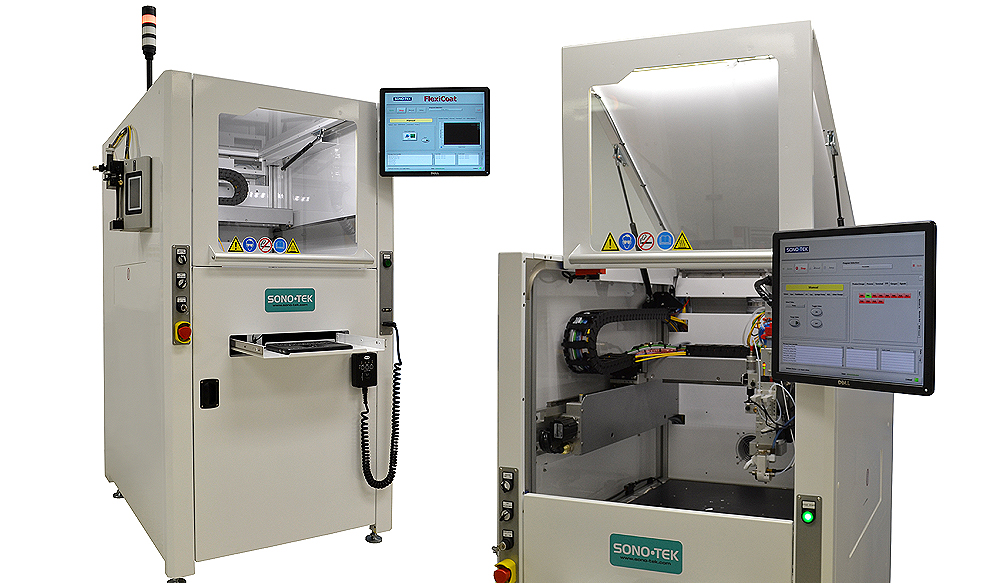

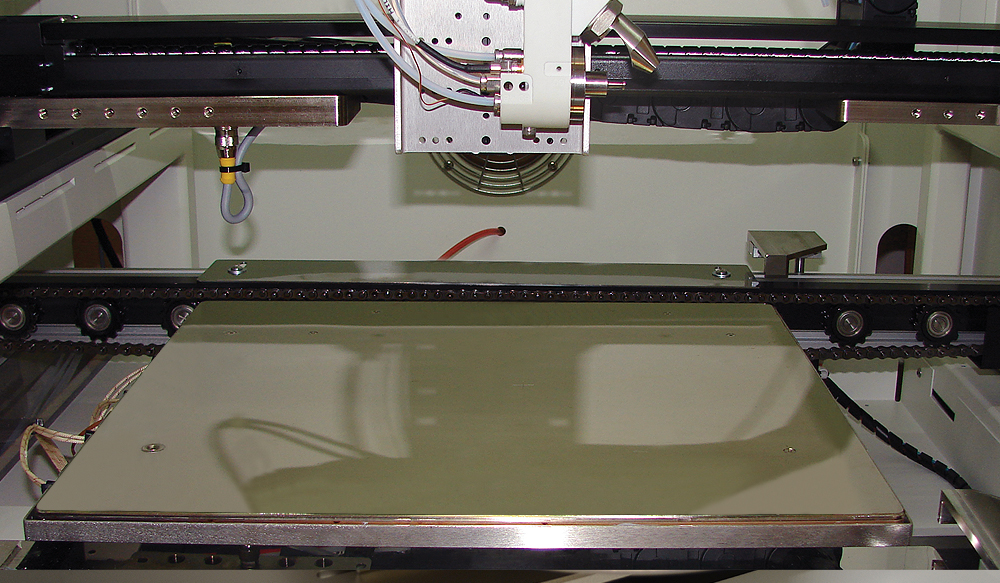

Fully automated, programmable standalone system with coordinated XYZ motion control using Windows-based software and user-friendly teach pendant with trackball. Versatile mid to high-volume or pilot scale production thin film coatings. Can be configured with standard SMEMA conveyor for inline coating solutions.



• Very high Platinum utilization proven in MEA fabrication; as high as 90%.
• Highly porous coatings are extremely durable, preventing cracking or peeling of catalyst layer.
• Up to 50% reduction in material consumption with reduced overspray, conserving expensive catalyst inks.
• Clean, precise spray patterns that are easily shaped for various applications.
• Highly controllable spray that produces reliable, consistent results.
• Non-clogging atomized spray that does not deviate.
• Excellent stiction “adherence” to PEM; optimal for high vibration fuel cell applications such as automotive parts.



Basic Specifications

DIMENSIONS: 869 mm W x 1952 mm H x 1137 mm D (34” W x 76.9” H x 44.8” D)

WORK AREA*: 500 x 500 x 100 mm (19.69” x 19.69” x 3.94”) Larger configurations available up to 1.4x1.4 m *Note: Work area may be reduced depending upon system configuration

CONTROL: Windows-based (PC included)

POWER REQUIREMENTS: 120V, 220V +/- 10%, 50-60 Hz

AIR: 551.6 kPa (80 PSI) dry unlubricated air

MOTORS: Servo

CERTIFICATION: CE

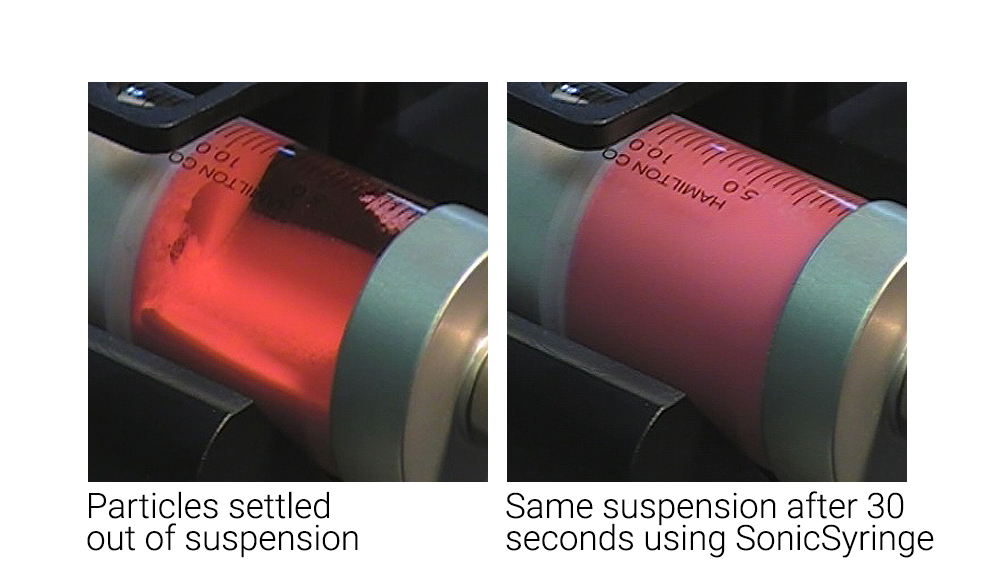

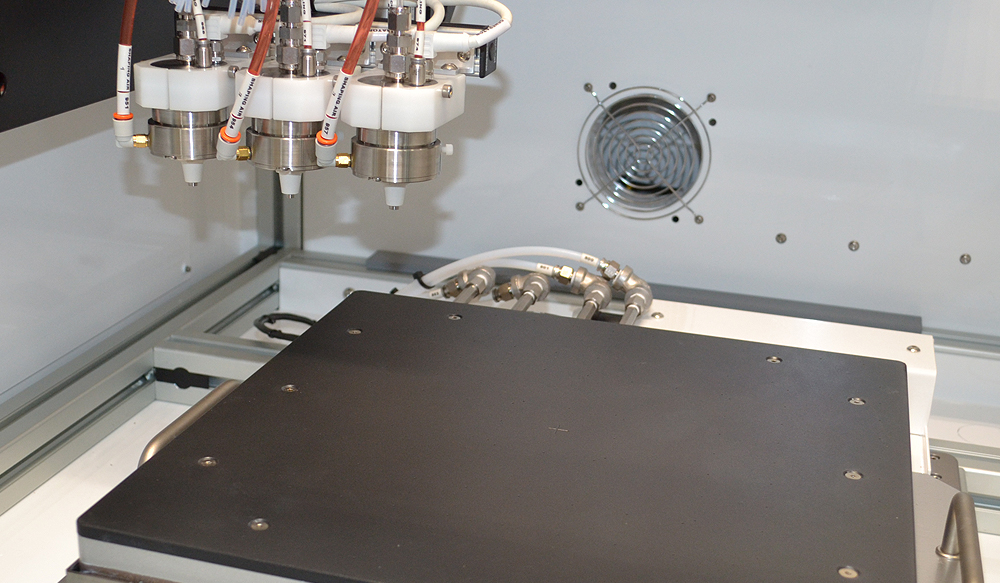

ULTRASONIC NOZZLE DESIGNS: AccuMist, Impact, Vortex, MicroMist, or Propel
