Solid Phase Extraction System

RayKol's Fotector series Automated Solid Phase Extraction Systems are automated SPE and purification equipments, designed to meet the requirements of large-scale sample preparation in modern testing laboratories. It moderates the workflow bottleneck of manual operation with precise flow rate control and repeat processing. Compact instrument design, good fit in a fume hood, minimize chemical exposure and contact lab technicians. Fotector series automated SPE systems can be widely used in any pre-treatment of the large sample size required solid-phase extraction, such as pesticide and veterinary drug residues in food, harmful organic compounds in the environment, poisonous materials in blood and urine.

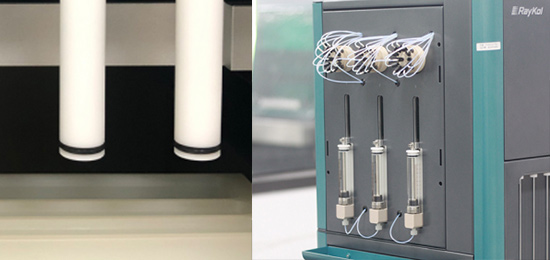

Features

• Fully automated solid-phase extraction, minimal operator intervention

• Accurate flow rate control to ensure parallelism

• Multiple extraction channels, consistent batch processing

• Efficient operation mode through sychronous rack positioning and fast solvent switch

• Flexible operation with various modules for different applications

• Graphical software interface, remote real-time monitoring



Specifications

Parameter	Specification
Product	Fotector 02HT	Fotector Plus	Fotector 08HT	FS 360
Extraction channel	2 channels in parallel	6 channels in parallel	8 channels in parallel	6 channels in parallel
Sample capacity	20, 12	60, 36	80, 48	36
SPE cartridge size	3mL, 6mL	1mL, 3mL, 6mL, 12mL, 20mL	1mL, 3mL, 6mL	3mL, 6mL, 12mL
Sample vials	15mL, 20mL, 60mL, 80mL	15mL, 20mL, 60mL, 80mL	15mL, 20mL, 60mL, 80mL	15mL, 20mL, 80mL
Collection vials	15mL, 20mL, 60mL, 80mL	15mL, 20mL, 60mL, 80mL	15mL, 20mL, 60mL, 80mL	15mL, 20mL, 80mL
Solvent capacity	8	8	8	8
Flow rate	0.1 to 100mL/min	0.1 to 100mL/min	0.1 to 100mL/min	0.1 to 100mL/min
Gas supply and connection	Nitrogen gas; Max. input: 100psi/6.9bar; Output: 0 to 20psi/1.4bar	Nitrogen gas; Max. input: 100psi/6.9bar; Output: 0 to 20psi/1.4bar	Nitrogen gas; Max. input: 100psi/6.9bar; Output: 0 to 20psi/1.4bar	Nitrogen gas; Max. input: 100psi/6.9bar; Output: 0 to 20psi/1.4bar
Fume hood/ventilation	Required	Required	Required	Required
Control software	Windows PC; WIFI connection	Windows PC; WIFI connection	Windows PC; WIFI connection	Windows PC; WIFI connection
Dimension	40cm x 38cm x 58cm	62cm x 38cm x 63cm	77cm x 45cm x 64cm	62cm x 38cm x 63cm
Weight	30kg	68kg	72kg	68kg
Power supply	200 to 240V, 50/60Hz	200 to 240V, 50/60Hz	200 to 240V, 50/60Hz	200 to 240V, 50/60Hz
Storage temperature	0 to 40°C	0 to 40°C	0 to 40°C	0 to 40°C
Storage humidity	20 to 85%	20 to 85%	20 to 85%	20 to 85%
Operating temperature	10 to 40°C	10 to 40°C	10 to 40°C	10 to 40°C
Operating humidity	20 to 80%	20 to 80%	20 to 80%	20 to 80%
