Laboratory Reactor

Overview

Modular design laboratory reactor for optimization and simulation of various chemical reactions as well as for mixing and homogenizing processes in a laboratory scale.

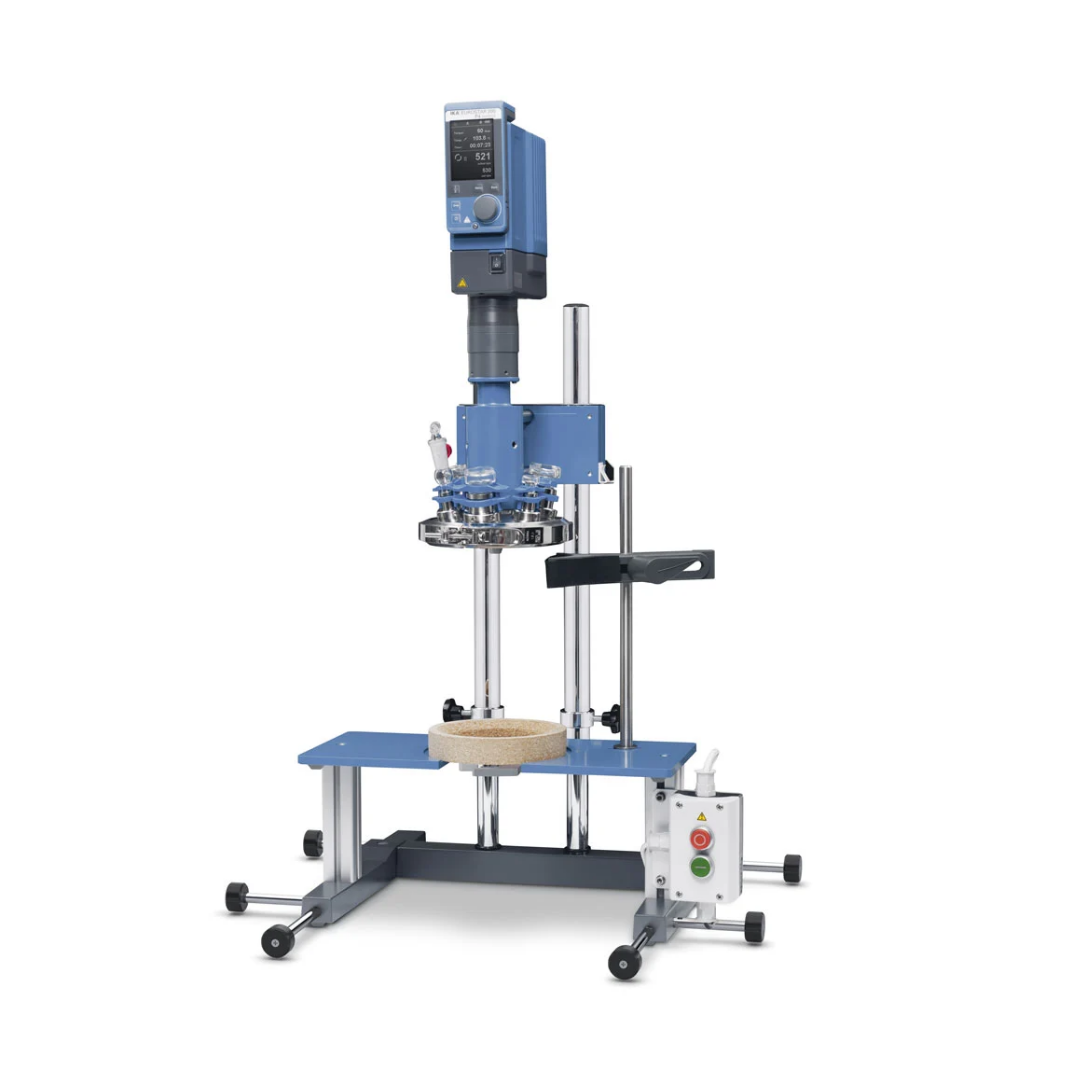

LR - 2.ST Laboratory Reactor laboratory system consisting of:

• Stand system
• Laboratory stirring unit EUROSTAR 200 control P4 with high torque
• Anchor stirrer LR 2000.11 with flow borings
• Safety shutdown
• Reactor cover

In the free connections of the reactor cover a dispersing unit (ULTRA-TURRAX®), temperature sensors, flow breakers and other equipment can be installed.

Suitable for vacuum operation. Seals in contact with the product are made of solvent- resp. temperature-resistant perfluoroelastomer (FFPM). Infinitely adjustable speed.
Integrated torque trend display for the measurement of viscosity changes. Through control actuated by microprocessor the set speed is held constant, even under load.



Technical Data

Useable volume	500 - 2000 ml
Working temperature	room temp. - 230 °C
Attainable vacuum	25 mbar
Viscosity max.	150000 mPas
Speed range	8 - 290 rpm
Telescope stand stroke	390 mm
Material in contact with medium	borosilicate glass, FFPM, PTFE, steel 1.4571
Reactor vessel openings (units/standard)	3/NS 29/32 2/NS 14/23
Dimensions (W x H x D)	460 x 1240 x 430 mm
Weight	25 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Voltage	115 V
