LB 134 Universal Dose Rate Monitor

The LB 134 Universal Monitor II can be used for the measurement of radioactive alpha and beta/gamma contaminations, for the determination of activities, as well as for the determination of the gamma and neutron dose rate in the parameter ambient equivalent dose and dose rate H*(10). A large number of different detectors can be connected to the base unit for this purpose. By integrating a Geiger-Müller counter tube it is possible to measure the gamma dose rate without connecting an additional external detector.

Whatsapp

Overview

  • Versatile combination system as dose and dose rate monitor for Gamma or Neutron radiation
  • Integrated dose rate detector

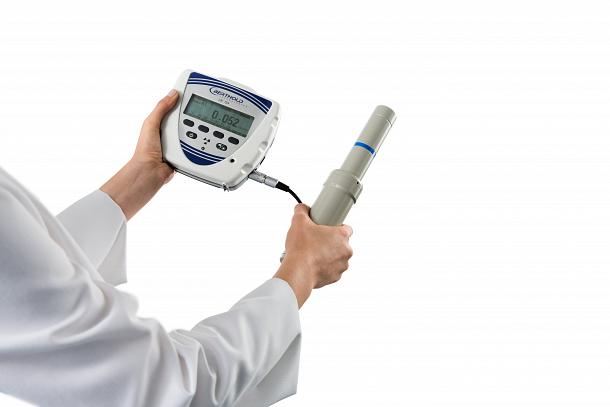

  • The small portable evaluation unit LB 134 allows connection of the gamma probe LB 1236-H10, the neutron probe LB 6411or LB 6411-Pb for high energy neutrons
  • Offers various measuring modes: cps, dose rate and dose integration

Applications

  • Nuclear Medicine
  • Civil defence and disaster control
  • Research Facilities
  • Industry and Services
  • Public Facilities
  • Nuclear Facilities

Display monochrome LCD 192 x 64 pixel Electro-luminescence illumination
Measurement modes ratemeter, scaler-timer, search mode

External dimensions

 160 x 160 x 55 (L x W x D in mm)
Weight 1400 g (with batteries)
Data memory 2400 measured values with date & time
Communication USB (1 device, 1 host for memory stick), RS 485
Max. operating time >15 h alkaline batteries 2.6 Ah (4 x AA)
>10 h NiMH rechargeable batteries 1.9 Ah (internal detector activated)
Protection class IP 53 (according to IEC 60529)



ACCESSORIES

Order Information and Accessories

  • LB 1342; ZnS (170 cm²); α-βγ contamination (63189)
  • LB 1343; ZnS (300 cm)²; α-βγ contamination (63190)
  • LB 1341; XE gas (150 cm²); βγ contamination (63188)
  • LB 1231; XE gas (230 cm²); βγ contamination (81821)
  • LB 1233; P10 gas (230 cm²); α-βγ contamination (81823)
  • LB 1234; Nal crystalγ activity; γ (only cps) (36103)
  • LB 1239; P10 - gas; tritium contamination (81905)
  • LB 6411; He-3 detector; neutron dose rate (64039)
  • LB 6411-1; He-3 detector (reduced pressure); neutron dose rate (64040)
  • LB 1236-H10; proportional detector; γ dose rate (63998)
  • LB 6414; He-3 detector; neutron survey (64985)
  • LB 6386; P10 gas (2000 cm²); α-βγ contamination (33414)
  • LB 6376; Xe gas (2000 cm²); βγ contamination (33413)
