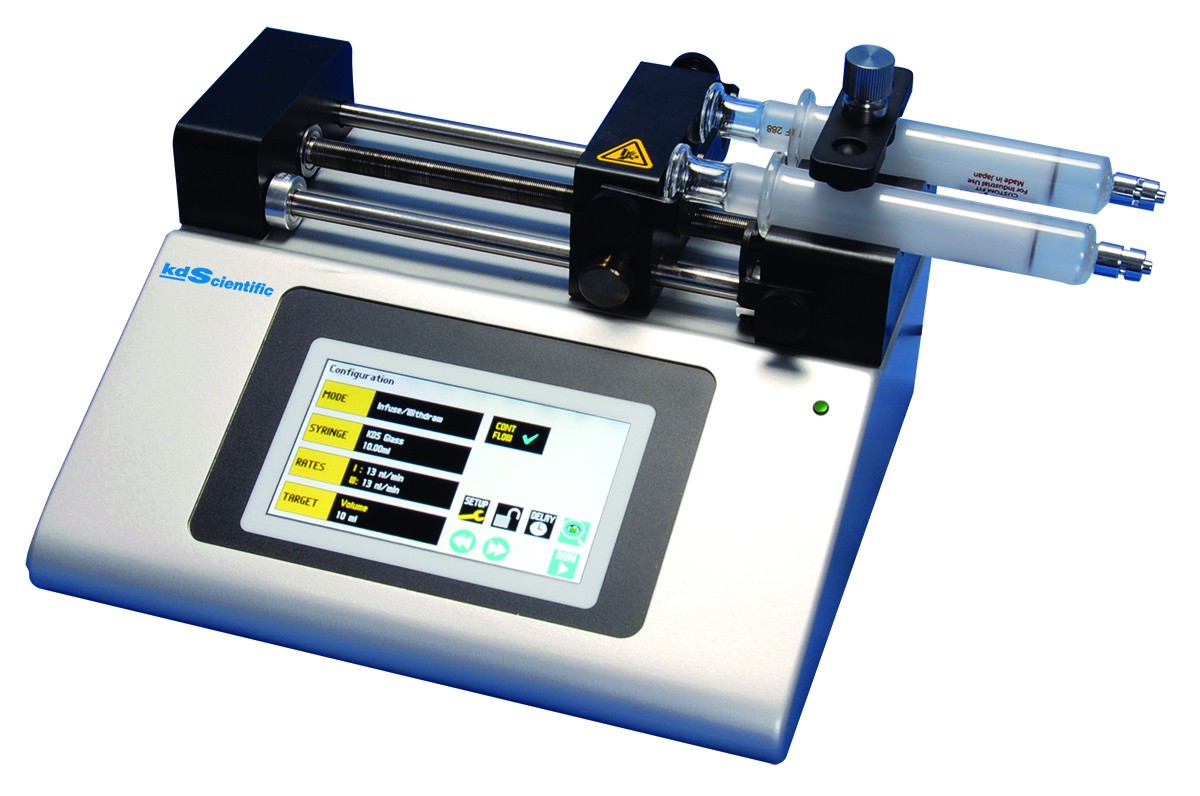

Picoliter Syringe Pump

DUAL SYRINGE, PROGRAMMABLE TOUCH SCREEN, PICOLITER, INFUSION/WITHDRAWAL PUMP

Dual syringe infuse/withdraw optimized for low flow with program options for 2 programs. 50 steps each. Accommodates syringes 0.5 µl to 10 ml. User definable flow rates with selectable target volume or time values to control the total infusion volume.



Features

• Holds one or two syringes from 0.5 µl to 10 ml
• High resolution color touch screen
• Unparalleled ease of use
• Touch pad "lock" feature
• LED light on front panel
• Full metal chassis
• Built in syringe table
• Up to 30 lb linear force
• Advanced microstepping techniques
• Built in RS485 interface
• USB port
• I/O & TTL interface
• Continuous mode of operation
• Spill dam
• Programmable



Specifications

Accuracy	±0.35%
Syringes (Min/Max)	0.5 µl to 10 ml
Flow Rate	Minimum (0.5 µl syringe): 0.58 pl/min Maximum (10 ml syringe): 11.70 ml/min
Display	4.3 WQVGA TFT Color Display with Touchpad
Non-Volatile Memory	Stores all Settings
Connectors	RS485 - IEEE-1394 6 pos USB - Type B I/O & TTL - 15 pin D-Sub Connector
Linear Force (Max)	13.6 kg (30 lb) @ 100% Force Selection
Drive Motor	0.9 Stepper Motor
Motor Drive Control	Microprocessor with 1/16 microstepping
Number of Microsteps per one rev.of Lead Screw	20,480
Step Revolution	0.031 µm/ustep
Step Rate - Minimum	27.5 sec/µstep
Step Rate - Maximum	26 µsec/µstep
Pusher Travel Rate - Minimum	0.02 µm/min
Pusher Travel Rate - Maximum	71.55 mm/min
Power	100-240 VAC: 50/60 Hz, 50 W, 0.5 A fuse
Dimensions	22.6 x 19.05 x 15 cm (9 x 7.5 x 5 in)
Weight	2.66 kg (5.9 lb)
Operating Temperature	4 degree C to 40 degree C (40 degree F to 104 degree F)
Storage Temperature	-10 degree C to 70 degree C (14 degree F to 158 degree F)
Humidity	20% to 80% RH non condensing
Mode of Operation	Continuous
Classification	Class 1
Pollution Degree	1
Installation Category	11
Regulatory Certification	CE, UL, CSA, CB Scheme, EU RoHS
