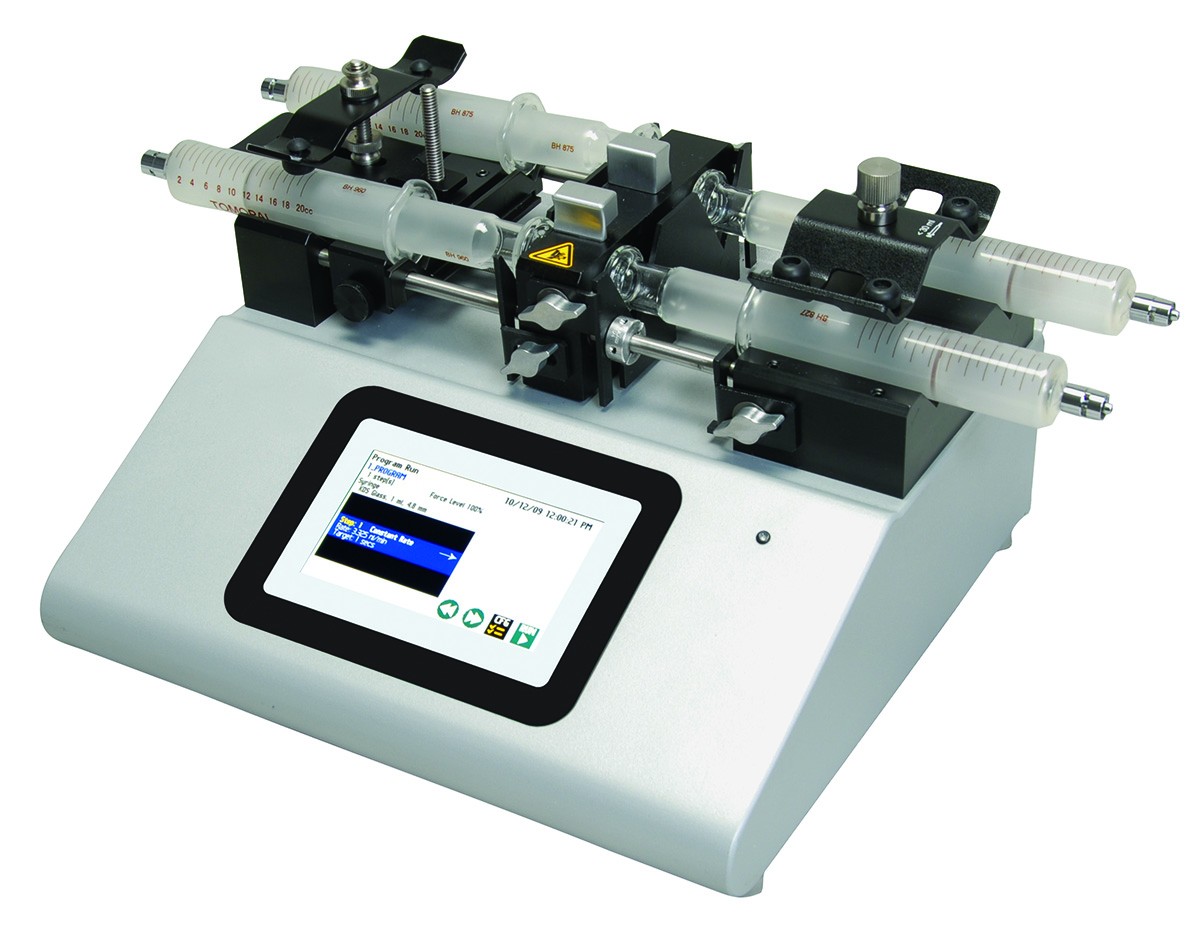

Continuous Flow Syringe Pump

DUAL SYRINGE, PROGRAMMABLE TOUCH SCREEN, CONTINUOUS FLOW, PUSH-PULL PUMP

Push-Pull syringe pump. Accommodate two syringes for infusion and two syringes for withdrawal. These models support infusion and withdrawal simultaneously at user defined flow rates and with selectable target volumes to control the total volume pumped. They also support infuse only, withdraw only, infuse/withdraw/ withdraw/infuse and continuous mode, user-defined flow rates with selectable target volumes.

The 270P Model allows user defined configurations/programs of up to 800 steps. Up to 40 programs of 20 steps each step can be stored in memory.

A version with 0-10 VDC Analog Control is also available.



Features

• Holds one or two syringes from 0.5 µl to 140 ml
• High resolution color touch screen
• Real time clock
• Unparalleled ease of use
• Touch pad "lock" feature
• LED light on front panel
• Full metal chassis
• Built in syringe table
• Up to 75 lbs linear force
• Advanced microstepping techniques
• Built in RS485 interface
• USB port
• I/O & TTL interface
• Continuous mode of operation
• Spill dam
• Programmable (270P Model)



Specifications

Accuracy	±0.35%
Reproducibility	±0.05%
Syringes (Min/Max)	0.5 µl to 140 ml
Flow Rate	Minimum (0.5 µl syringe): 3.06 pl/min Maximum (140 ml syringe, 37.948 mm inner diameter): 215.8 ml/min
Display	4.3 WQVGA TFT Color Display with Touchpad
Non-Volatile Memory	Stores all Settings
Connectors	RS232 - 9Pin D-Sub Connector RS485 - IEEE-1394 6 pos USB - Type B I/O & TTL - 15 pin D-Sub Connector
Linear Force (Max)	34 kg (75 lb) @ 100% Force Selection
Drive Motor	1.8 degree Stepper Motor
Motor Drive Control	Microprocessor with 1/16 microstepping
Number of Microsteps  per one rev.of Lead Screw	6,400
Step Rate - Minimum	27.5 sec/µstep
Step Rate - Maximum	26 µsec/µstep
Pusher Travel Rate - Minimum	0.36 µm/min
Pusher Travel Rate - Maximum	190.80 mm/min
Power	100-240 VAC: 50/60 Hz, 50 W, 0.5 A fuse
Dimensions	16.51 x 25.4 x 27.94 cm (6.5 x 10 x 11 in)
Weight	4.9 kg (10.75 lb)
Operating Temperature	4 degree C to 40 degree C (40 degree F to 104 degree F)
Storage Temperature	-10 degree C to 70 degree C (14 degree F to 158 degree F)
Humidity	20% to 80% RH non condensing
Mode of Operation	Continuous
Classification	Class 1
Pollution Degree	1
Installation Category	II
Regulatory Certification	CE, UL, CSA, CB Scheme, EU RoHS
