Balloon Catheter Coating System

Standalone coating system for applying ultra-thin layers of anti-restenosis drug polymer+plasticizer coatings onto implantable balloon catheters. Balloon are inflated prior to coating using auto inflation device.



• Highly uniform thin film coatings onto cardiac or other balloon catheters for homogenous drug transfer at lesion.
• Dramatic material savings compared to dip coating.
• Reliable, repeatable, controllable balloon catheter coatings.
• Capable of atomizing common combinations of chemistries, including hydrophilic carriers and plasticizers for added coating flexibility.
• Durable coatings with no cracking or peeling ensure proper delivery of the drug at blockage site.
• Ability to spray targeted areas (stripes) on balloon surfaces if preferred rather than coating the entire balloon surface.

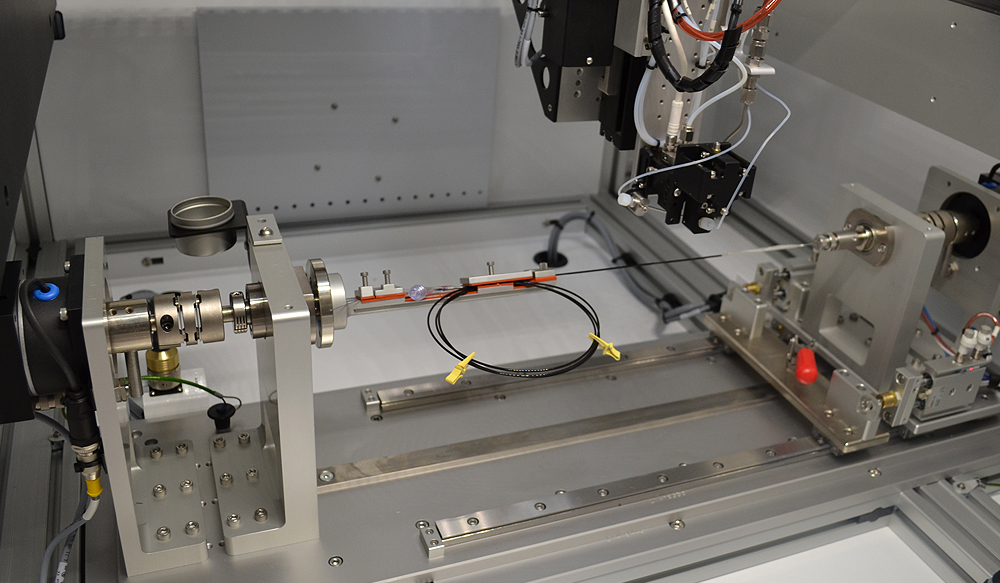

• Medical grade gasketing on the catheter holder ensures no damage to the catheter assembly or coiled catheter.



Basic Specifications

DIMENSIONS: 863mm W x 1612 mm H x 1168 mm D (34” W x 63.5” H x 46” D)

WORK AREA: 500 mm x 500 mm x 100 mm (19.7” x 19.7” x 3.9”)

CONTROL: Windows-based (PC included)

POWER REQUIREMENTS: 120V, 220V +/-10%, 50-60Hz

AIR: 551.6 kPa (80 PSI) dry, unlubricated air

MOTORS: Brushless DC servo

CERTIFICATION: CE

ULTRASONIC NOZZLE DESIGNS: AccuMist, MicroMist
