Portable Rat and Mouse Stereotaxic Instrument
The portable stereotaxic instrument cancels the traditional U-shaped frame, and the operation space is larger. The adaptor and ear bars are removable for rodents of different weights. The height of the adaptor is adjustable from 0-55mm, and the height of the ear bars is adjustable from 0-45mm, which is convenient for adjusting the level of the skull. The accuracy of non-digital models is 100 μm, and the accuracy of digital display models is 10 μm.
WhatsappOverview
Technical Parameters
- Base plate size: 400mm x 255mm.
- Distance between ear bar and base plate: 35.5mm.
- Ear bar slots with vernier of 0.1mm resolution.
- Scale range of Ear bars: 35mm with 1mm resolution.
- Dorsal/Ventral adjustment range for the adaptor: 30mm (+10mm~-20mm) with 0.1mm resolution.
- Working distance in 3 dimension is 80 mm with precise alignment to 0.1mm resolution.
- Vertical direction: 180° rotation and lock at any angles.
- Horizontal direction: 360° rotation and lock at any angles.
- Dual-lead screws ensure stable, accurate and smooth manipulation.
- Accuracy and flexibility can be maintained at variable temperatures.
- Unique anti-clockwise UP mark engraved in the knob prevents incorrect operation.
- Vertical lock and fixing knob are separated to ensure accurate function at any angle.
- Replace the U-frame, enlarge the operating space, more economical and reliable
- Laser engraved scales enable comfortable reading.
- Ear bar locked plate pressing instead of clamping ensures more stability.
- Syringe pump, micro camera and drill can be attached to instruments.
Order Information
| Category | Model | Product Description | Remark |
| Stereotaxic host (without accessories) |

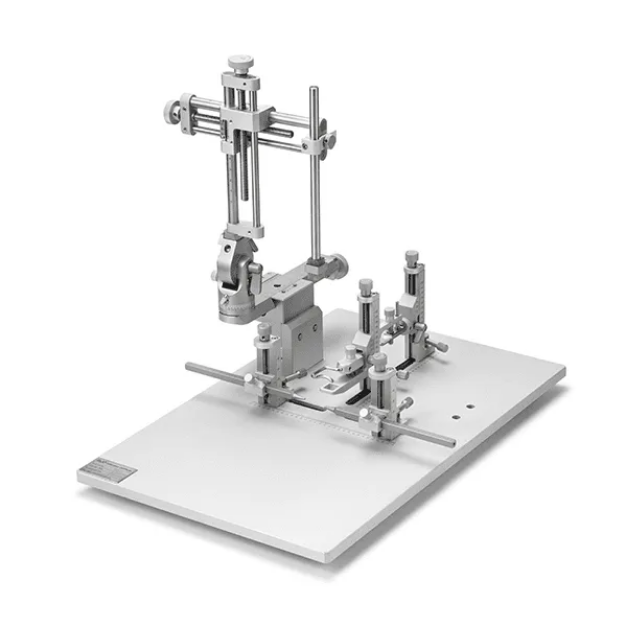

68809 | Portable Rat and Mouse Stereotaxic Instrument, SGL M | Standard configuration, non-digital model (accuracy is 100μm), including 68867S base, 68401 3-axis manipulator-left, without adaptor, ear bars, holder and mask. |

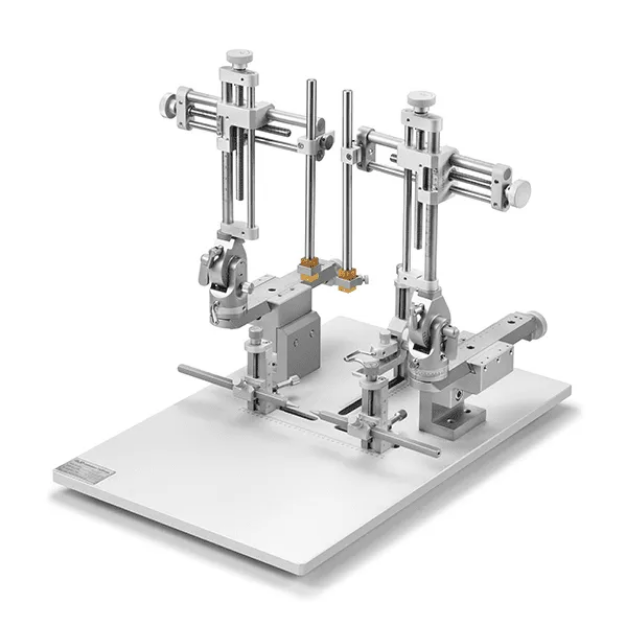

| 68810 | Portable Rat and Mouse Stereotaxic Instrument, Dual M | Standard configuration, non-digital model (accuracy is 100μm), including 68867D base, 68401 3-axis manipulator-left, 68402 3-axis manipulator-right, without adaptor, ear bars, holder and mask. | |

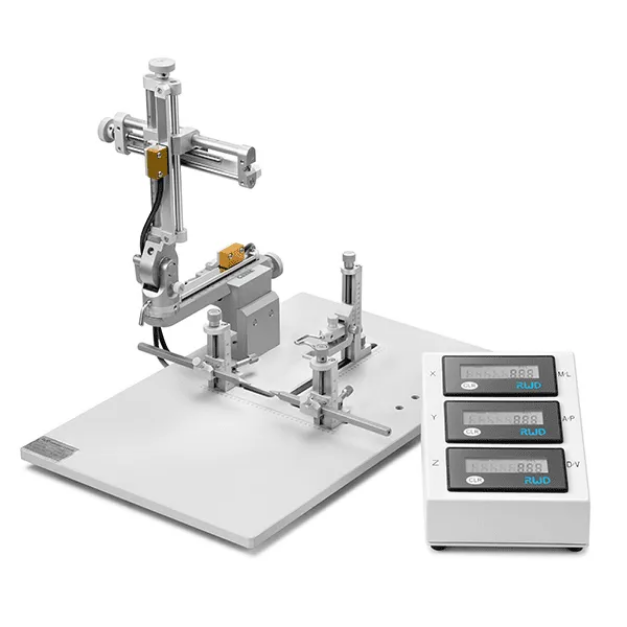

| 68811 | Portable Rat and Mouse Stereotaxic Instrument, SGL M, Digital | Standard configuration, digital model (accuracy is 10μm), including 68867S base, 68409 3-axis digital manipulator-left, without adaptor, ear bars, holder and mask. | |
| 68812 | Portable Rat and Mouse Stereotaxic Instrument, Dual M, Digital | Standard configuration, digital model (accuracy is 10μm), including 68867D base, 68409 3-axis digital manipulator-left, 68410 3-axis digital manipulatorright, without adaptor, ear bars, holder and mask. | |
| Required accessories (optional)* | 68087 | Mouse Adaptor | Only used for portable rat and mouse stereotaxic instrument |
| 68088 | Rat Adaptor | Only used for portable rat and mouse stereotaxic instrument | |
| 68301 | Rat 18° Ear Bars | ||
| 68306 | Mouse 60° Ear Bars | ||
| 68201 | Standard Probe Holder-Corner, clamping range: 0.3-1.5mm. | ||
| 68217 | Cannula Holder, clamping diameter: 3.5mm. | The clamping part is made of plastic. | |
| 68205 | Cannula Holder, clamping diameter: 3.5mm. | The clamping part is made of metal. | |
| 68214 | Ceramic Ferrule Holder, clamping diameter: 1.25mm. | ||
| 68215 | Ceramic Ferrule Holder, clamping diameter: 2.5mm. | ||
| 68206 | General Probe Holder, clamping range: 3-12mm. | ||
| 68218 | Syringe Holder, the syringe barrel clamping range is 6mm-12mm, and the syringe needle clamping range is 0.3mm-1.5mm. |
||
| 68605 | Microdrill Holder, clamping diameter: 14.5mm. | Suitable for 78001 microdrill. |
*Indicates that other specifications can be selected, which can be viewed from the product catalog of RWD.
