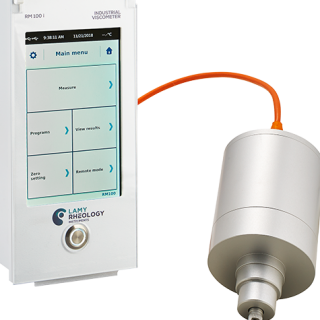

RM 100 i - Industrial Viscometer

RM 100 i is an industrial viscometer for viscosity and measurement on large volume

Whatsapp

Overview

The RM100 i industrial viscometer is perfectly suited for so-called immersion use, installing it over a tank or on a support for a measurement in a pot. Only the measuring head is above the product, the electronic box can be installed more than 17 meters in a control cabinet with its 4-20mA output.
  • Measure on large containers.
  • Distance 2 m (up to 17m in option) between measuring head and control box.
  • 4-20 mA output for external control.


Specifications

  • TYPE OF INSTRUMENT :
    Rotating springless viscometer in immersion tank with 7’’ Touch screen
  • ROTATION SPEEDS :
    Unlimited number of speeds between 0.3 and 1500 rpm
  • TORQUE RANGE :
    De 0,05 à 30 mNm
  • ACCURACY :
    +/- 1 % of the full scale
  • REPEATABILITY :
    +/- 0,2 %
  • DISPLAY :
    Viscosity (cP/Poises or mPa.s / Pa.s)-Speed – Shear rate – Torque – %- Shear stress - Time – Temperature
  • COMPATIBLE ACCESSORIES :
    External temperature probe -50°C to +300°C.
    Standard or rack stand
    HELIPRO stand
    Small volume package
    Small volume package
    THERMOCELL package
    Barcode reader with stand and cable
    Touch screen protector
    Viscosity standards oil
    RheoTex software
    Cable extension 5 m (Ref. 113202) max 3 unit.
  • SECURITY AND CONFIDENTIALITY :
    An «operator» function allows you to enter a username for your
    instrument. This user must then be identified using a 4-digit code.
    There is also a protected mode that locks your measurement
    conditions.
  • LANGUAGES :
    French/English/Russian/Spanish/Turkish/German
  • COMPATIBLE MEASURING SYSTEMS :
    MS DIN, MS RV/LV, MS BV, MS VANE, MS R, MS ULV, MS SV
  • COMPATIBLE TEMPERATURE CONTROL :
    EVA DIN, EVA MS-R, EVA LR-BV, RT1
  • SUPPLY VOLTAGE :
    90-240 VAC 50/60 Hz
  • PC CONNECTIONS :
    RS232 Port and USB
  • PRINTER CONNECTION :
    USB Host Port - Compatible
    PCL/5
  • DIMENSIONS AND WEIGHT :
    Head : Ø 95 mm
    Box D140 x H260 x W120
    Weight: 3 kg
