Rheometer

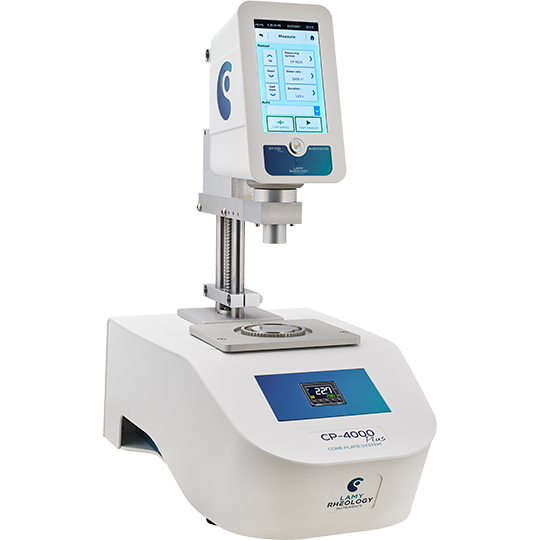

The motorized lift of the RM200 CP4000 PLUS allows a fast and repeatable installation of cone and plate measuring systems guaranteeing reliable rheological measurements whatever your application.

• Temperature range -20°C to 300°C (according to models).

• Automatic adjustment of measuring gap.

• Low volume measurement.

• High shear rate (up to 20000 s-1).

• Removable lower plate.

• Quick attachment with AC265 coupling.



Specifications

• TYPE OF INSTRUMENT :

  Rotating springless rheometer with 7’’ Touch screen

• ROTATION SPEEDS :

  Unlimited number of speeds between 0.3 and 1500 rpm

• TORQUE RANGE :

  From 0.05 to 30 mNm

• TEMPERATURE :

  Temperature range from – 20°C to + 300 °C (according to models)

• ACCURACY :

  +/- 1 % of the full scale

• REPEATABILITY :

  +/- 0,2 %

• DISPLAY :

  Viscosity (cP/Poises or mPa.s / Pa.s)-Speed – Shear rate – Torque – %- Shear stress - Time – Temperature

• COMPATIBLE ACCESSORIES :

  Barcode reader with stand and cable
  Touch screen protector
  Viscosity standards oil
  Dymo printer
  RheoTex software
  Protection cover (Ref. 121019).

• SECURITY AND CONFIDENTIALITY :

  An “operator” function allows you to enter a username for your
  instrument. This user must then be identified using a 4-digit code.
  There is also a protected mode that locks your measurement
  conditions.

• LANGUAGES :

  French/English/Russian/Spanish/Turkish/German

• COMPATIBLE MEASURING SYSTEMS :

  MS CP

• SUPPLY VOLTAGE :

  90-240 VAC 50/60 Hz

• PC CONNECTIONS :

  Port RS232 and USB

• PRINTER CONNECTION :

  USB Host Port - Compatible
  PCL/5

• WHAT BENEFITS ARE THERE FOR YOU?

  Save your flow curves and calculate your rheological parameters
  directly without computer (Plastic viscosity, flow limit, Thixotropy,
  Regression models according to Newton, Bingham, Casson
  and Ostwald) . Choose your attachment system tailored to your
  product constraints.

• DIMENSIONS AND WEIGHT :

  D610 x H700 x W340 mm
  Weight: 22 kg
