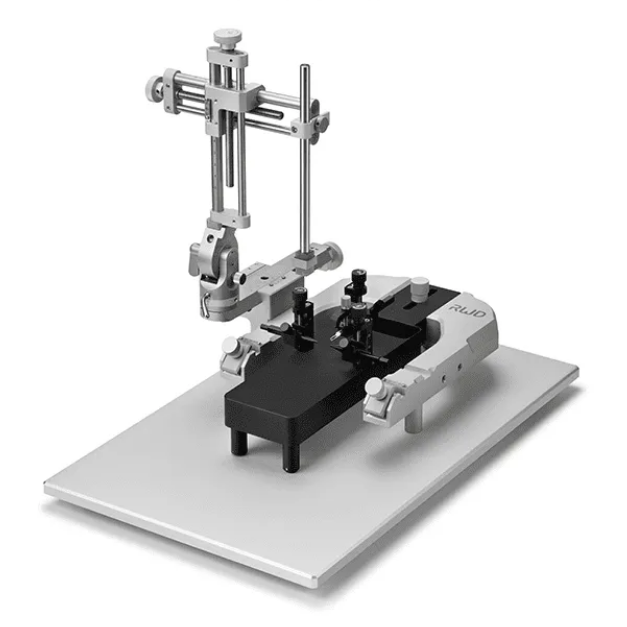

Digital Rat Stereotaxic Instrument

Technical Parameters

1. Adaptors available for rat, mouse, rabbit, guinea pig, etc.
2. Working distance in each dimension is 80 mm with precise alignment to 0.1mm resolution.
3. Vertical direction: 180° rotation and lock at any angles.
4. Horizontal direction: 360° rotation and lock at any angles.
5. Dual-lead screws ensure stable, accurate and smooth manipulation.
6. Accuracy and flexibility can be maintained at variable temperatures.
7. Extended base plate (400mm x 255mm) is applicable for a variety of animal sizes.
8. Unique anti-clockwise UP mark engraved in the knob prevents incorrect operation.
9. Vertical lock and fixing knob are separated to ensure accurate function at any angle.
10. To ensure a precise designed lateral rotation operating space, the distance between knob and the U-shaped frame is 28mm.
11. Laser engraved scales enable comfortable reading.
12. Curved nose clamp design secures the head of animals.
13. Ear bar locked plate pressing instead of clamping ensures more stability.
14. Syringe pump, micro camera and drill can be attached to instruments.



Order Information

Category	Model	Product Description	Remark
Stereotaxic host (without accessories)	68801	Standard Stereotaxic Instrument, SGL M	Standard configuration, contains 68861N base, 68401 3-axis manipulator-left, without adaptor, ear bars, holder and mask.
	68802	Standard Stereotaxic Instrument, Dual M	Standard configuration, contains 68861N base, 68401 3-axis manipulator-left and 68402 3-axis manipulator- right, without adaptor, ear bars, holder and mask.
Required accessories (optional)*	68055	Mouse Adaptor
	68030	Mouse/Neonatal Rat Adaptor
	68057	Mouse Anesthesia Adaptor
	68021	Rat Adaptor
	68053	Rat Anesthesia Adaptor
	68301	Rat 18° Ear Bars
	68306	Mouse 60° Ear Bars
	68201	Standard Probe Holder-Corner, clamping range: 0.3-1.5mm.
	68217	Cannula Holder, clamping diameter: 3.5mm.	The clamping part is made of plastic.
	68205	Cannula Holder, clamping diameter: 3.5mm.	The clamping part is made of metal.
	68214	Ceramic Ferrule Holder, clamping diameter: 1.25mm.
	68215	Ceramic Ferrule Holder, clamping diameter: 2.5mm.
	68206	General Probe Holder, clamping range: 3-12mm.
	68218	Syringe Holder, the syringe barrel clamping range is 6mm-12mm, and the syringe needle clamping range is 0.3mm-1.5mm.
	68605	Microdrill Holder, clamping diameter: 14.5mm.	Suitable for 78001 microdrill.

*Indicates that other specifications can be selected, which can be viewed from the product catalog of RWD.
