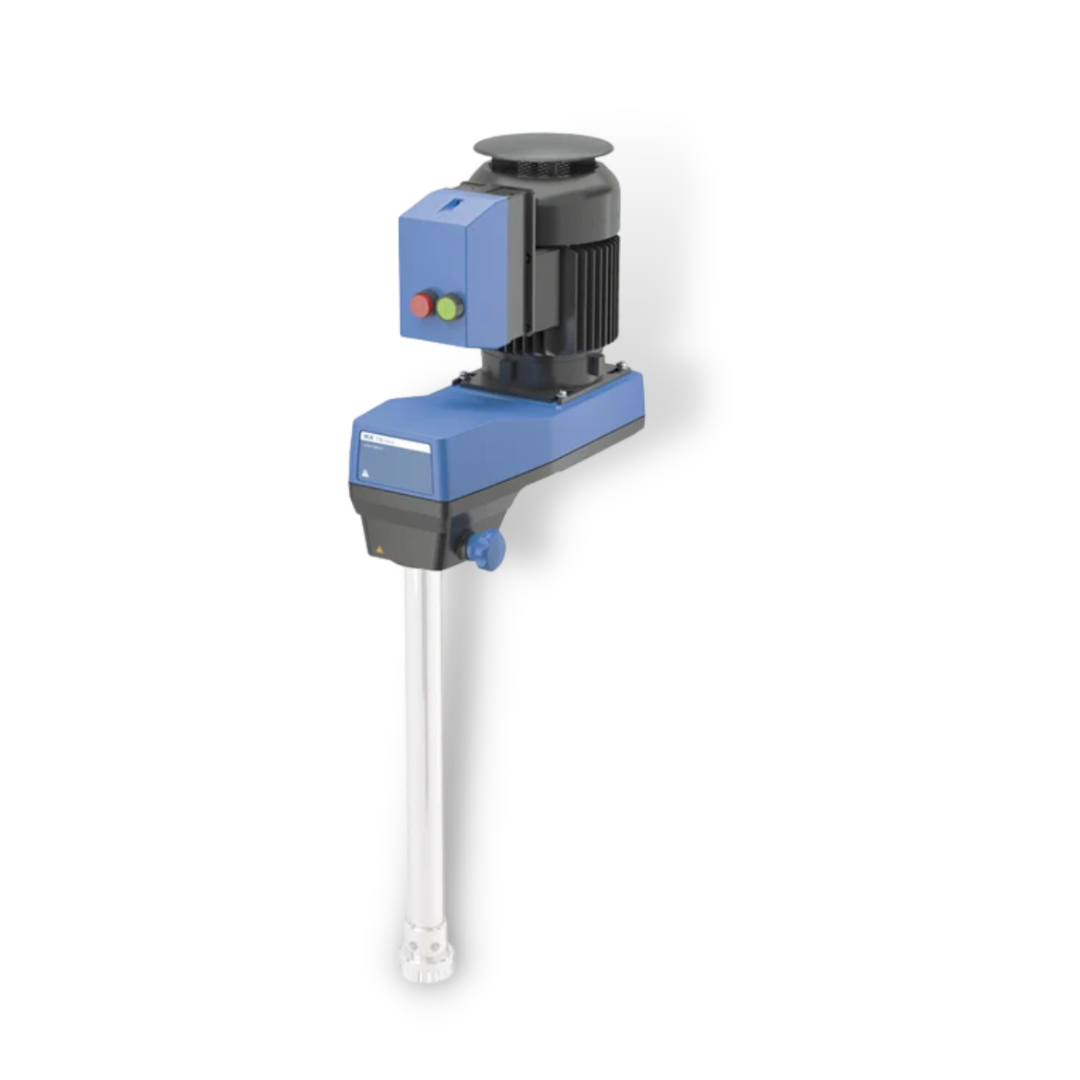

Disperser / Homogeniser

Overview

Extremely powerful dispersing instrument for volumes from 2 - 50 l (H2O) for typical pilot plant stations. A fixed speed of 7200 rpm enables users to work at a high circumferential speed even with small rotor diameters. Three rotor-stator configurations guarantee a wide range of applications. Reproducible operations due to constant speed even with changes in viscosities.

• Electronic overload protection
• Plug-in connectors facilitate exchange of dispersing elements
• Optional stainless steel dispersing elements for use under vacuum and pressure
• Mains cable (2.5 m) and SI 400 safety switch are available as accessories (not included with delivery)

The device requires a 3-phase electricity supply in order to operate. The connection of the unit to the power supply must be done by a qualified electrician. Wiring diagrams are included in the manual for reference.



Technical Data

Motor rating input	1800 W
Motor rating output	1500 W
Volume range (H2O)	2 - 50 l
Viscosity max.	5000 mPas
Speed max.	7200 rpm
Noise without element	75 dB(A)
Process type	batch
Dimensions (W x H x D)	185 x 450 x 400 mm
Weight	26 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 54
Voltage	3 x 400 V
Frequency	50 Hz
Power input	2200 W

Other voltage variants available (3 x 400 V / 3 x 230 V)
