Shaker & Mixer

Overview

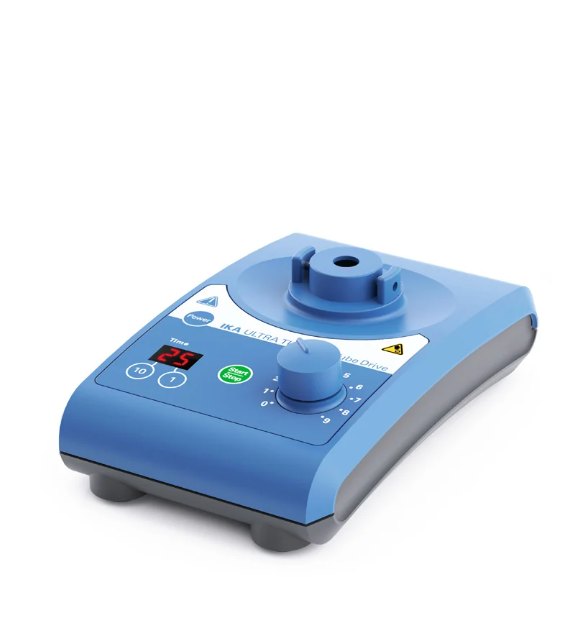

Unique and universal dispersing, stirring, homogenizing and grinding system with sealable disposable sample tubes. Protection and security for: Infectious sample materials, toxic substances, high-odor substances under defined conditions (time, energy, volume).

For research purposes only! Not suitable for diagnostic use (in accordance with the IVD Directive).

• Disperse, stir, homogenize and grind using a single drive unit
• No possibility of cross-contamination
• Sealable disposable sample tubes
• No cleaning required
• High level of user safety
• Suitable for individual use and use in series
• Gamma-sterilized tubes
• Tubes with pierceable membrane covers
• Tubes with 2 - 15 ml and 15 - 50 ml
• Reproducible tests
• Patented

Applications

Human medicine, pathology, veterinary medicine, animal hygiene institutes, Foodstuffs testing laboratories, Toxicology, Medical research, Pharmaceutical research, Biological research, Tumour biology, Chemistry, Cosmetics



Technical Data

Motor rating input	20 W
Motor rating output	17 W
Viscosity max.	5000 mPas
Speed range	300 - 6000 rpm
Speed deviation	10 %
Speed control	stepless
Speed display	scale
Noise without element	50 dB(A)
Process type	batch
Dimensions (W x H x D)	100 x 40 x 160 mm
Weight	0.75 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 20
Voltage	100 - 240 V
Frequency	50/60 Hz
Power input	20 W
DC Voltage	24 V=
Current consumption	800 mA
