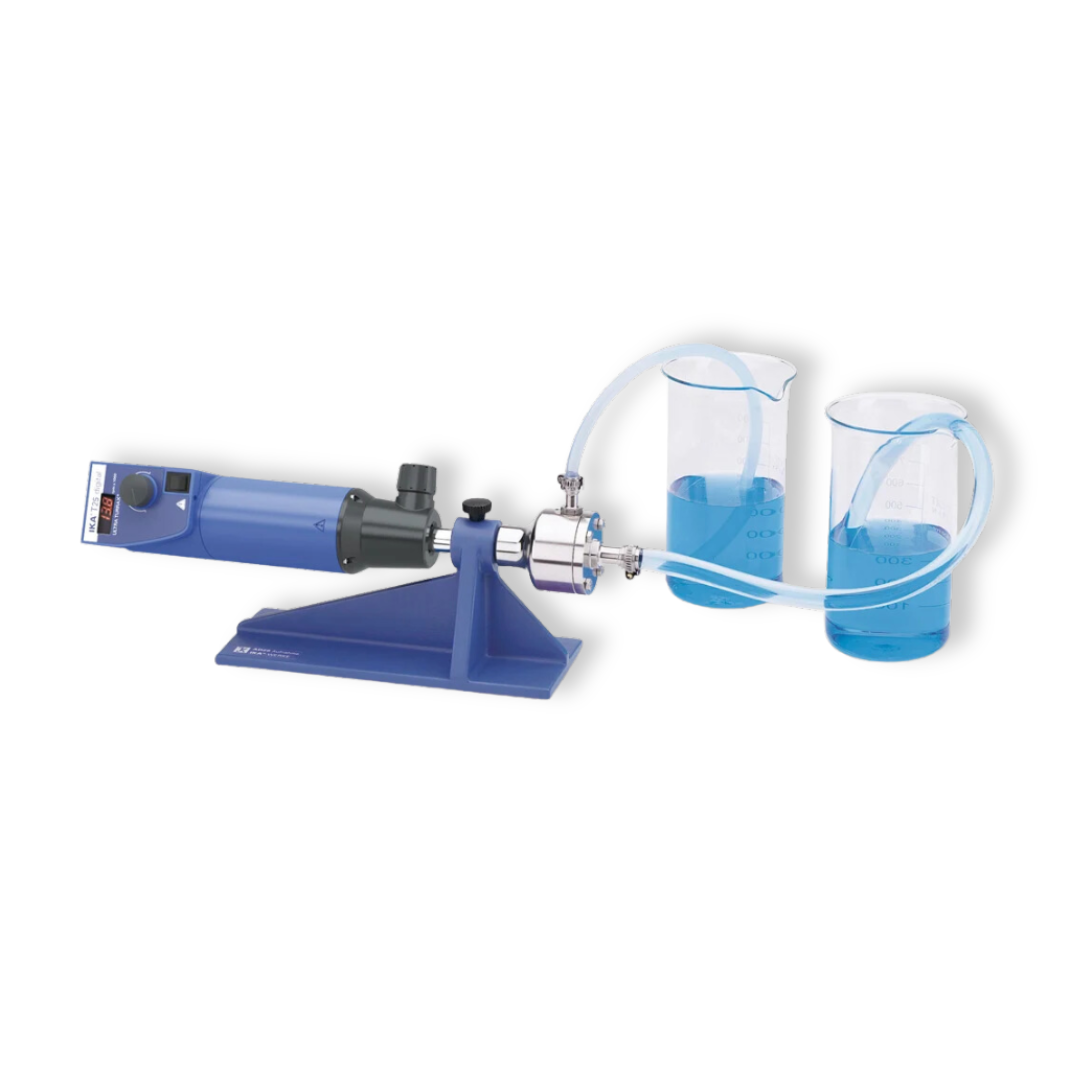

Disperser / Homogeniser

Overview

For circulation or flow-through processing in the laboratory.

• Simple, compact and sturdy modular design
• Sterilizable, autoclave-compatible
• Table-top or stand-supported device, low space requirement
• Easy disassembly
• Large delivery capacity of 4.4 to 11.6 l/min with open outlet (the mounting of a valve can reduce the flow rate)
• For air-free, sterile, and inline suspension, emulsifying and deagglomeration
• For vacuum or pressurized operation (up to 6 bar)
• If the DK 25.11 is used, air induction is also prevented in batch operation
• Not self-priming
• A pump can be integrated between intake nozzle and vessel. As a result, viscous fluids can be processed
• Not suitable for continuous operation or cyclical continuous operation
• The hoses used should have an inner diameter size of 13 mm (inlet) and 9 mm (outlet) respectively to fit the DK 25.11 flow chamber



Technical Data

Motor rating input	500 W
Motor rating output	300 W
Pump rate	11.6 l/min
Speed range	3000 - 25000 rpm
Speed adjustment	stepless
Speed display	scale
Noise without element	73 dB(A)
Extension arm diameter	13 mm
Extension arm length	175 mm
Chamber volume	26 ml
Attainable vacuum	1 mbar
Pressure max.	6 bar
Process type	inline
Dimensions (W x H x D)	450 x 120 x 100 mm
Weight	3.8 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 20
Voltage	230 V
Frequency	50/60 Hz
Power input	500 W

Other voltage variants available (230 V / 115 V)
