Spray Dryers

The Yamato GB210B spray drying granulator incorporates outstanding fluid bed drying technology made for sophisticated granulation of powder and drying of wet powder. Our GB210B Versatile Granulation Spray Dryer is a combination of the basic unit GB210 and the GF200 pulvis mini-bed attachment. In addition, this versatile granulating unit can be used for spray drying by installing the mini spray attachment GF300.



Features

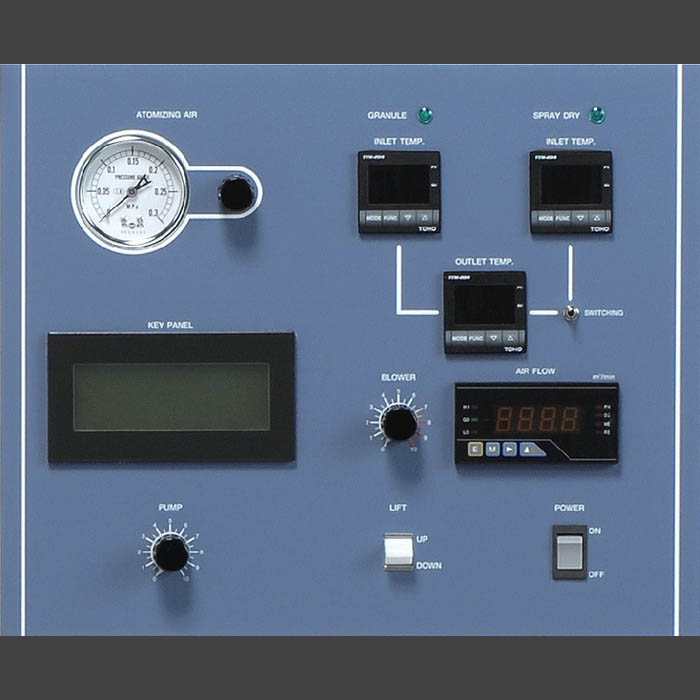

• Conditions such as hot air temperature, air amount, binder liquid flow amount can be set easily with the setting dial on the front of the spray dryer unit

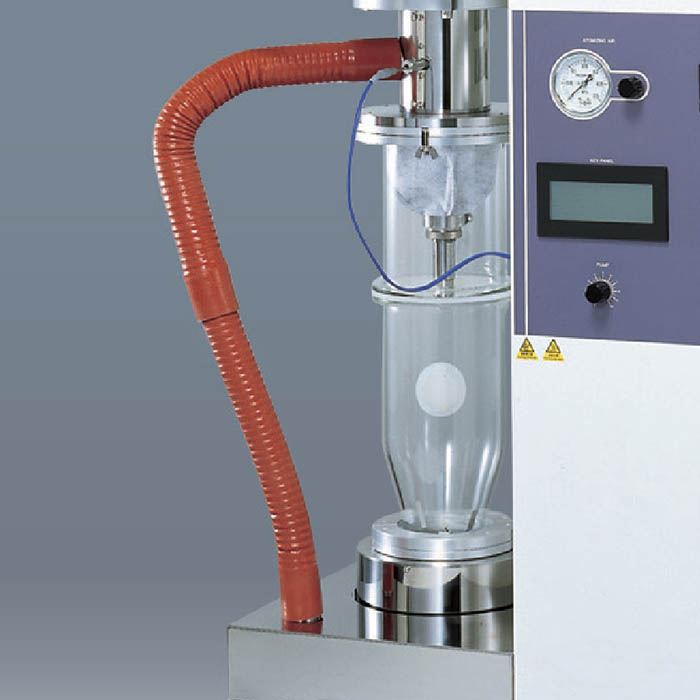

• Chamber is made of ultra hard glass and the user can observe status of the fluid bed or spraying status
• Flowage meter, spraying pressure meter and chamber inlet/outlet temperature indicator are useful for data evaluation
• Unit can also be used for spray drying by installing the mini spray attachment GF300 (optional)
• Standard equipped with automatic lift to enable convenient installation or removal of glass chamber attachment



Specifications

MODEL	GB-210B
Temp. Adjusting Unit Setting Range	40 to 220°C (inlet temperature), 0 to 98°C (outlet temperature)
Temperature Adjusting Accuracy	Inlet temperature ±1°C

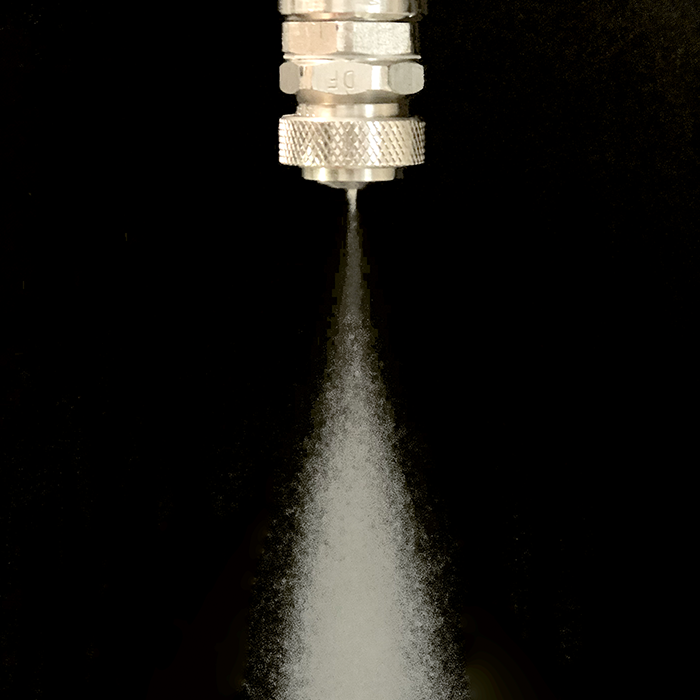

Spraying System	Two-way nozzle, Nozzle No. 1A as standard
Drying Air Amount Adjusting Range	0 to 0.7 m³/min
Spray Air Pressure Adjusting Range	0 to 0.3 MPa
Liquid Sending Pump Flow Rate Range	0 to 26 mL/min
External Output	Inlet temperature, outlet temperature, temperature outlet (4-20 mA)
Automatic Lift	Moving up/down of glass chamber automatic lift
Temperature Adjusting Device	PID digital
Touch Panel	Blower, heater, liquid sending pump, pulse jet switch, error display
Control Select Switch	Inlet temperature, output temperature control switch (outlet temp. control is conditional)
Temperature Sensor	K thermocouple
Heater	2.0 kW (at 200V) to 2.88 kW (at 240V)
Liquid Sending Pump	Fixed amount peristaltic pump
Spraying Air Pump	Spraying air compressor (sold separately) is used.
Service Outlet	For stirrer: AC100V, Max. 2A
Suction Blower	Bypass blower, brushless DC motor
Filter	Suction filter, exhaust filter
Spray Nozzle Cooling Mechanism	Connector: nipple x 2, O.D.:ø10.5 mm
Spray Air Connection Diameter	Nipple diameter:ø7 mm
Exhaust Connecting Diameter	ø50 mm
Safety Function	Inlet/outlet temperature overheat, sample feed reverse rotation mechanism, over current electric leakage breaker, nozzle connection error
External Dimension WxDxH	760 x 420 x 1350 mm
Weight	~110 kg
Power Supply	Single Phase AC200V~240V 50/60Hz 16~18A Switching of terminals necessary
Included Accessories	Silicon tube (with a stopper) x 3, tiron tube (with a stopper) x 2, exhaust duct (with one hose band) x 1, outlet temperature sensor, spray air tube, sample box, static electricity removal earth, Teflon braided hose 5m (with two hose bands), a container table
