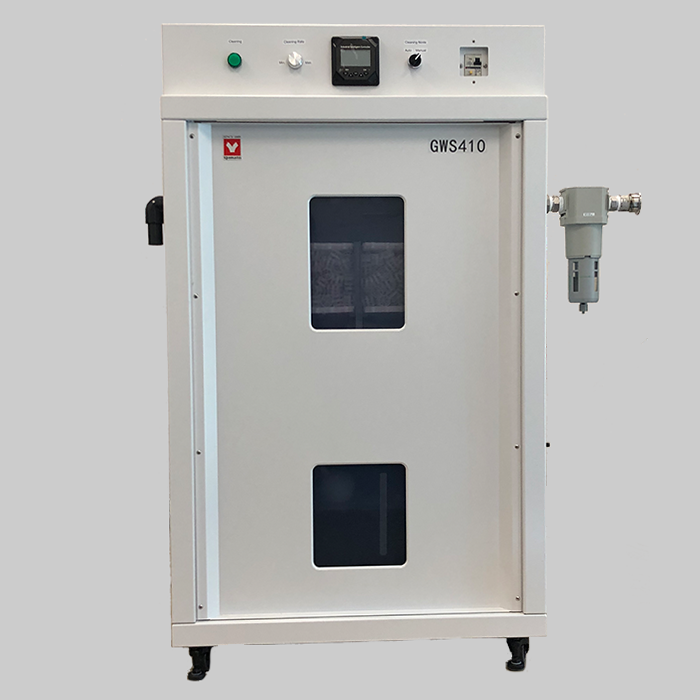

Yamato GWS410 Organic Solvent Washing Unit
The GWS410 is the world’s first water-based solvent neutralizer designed primarily for spray dryer. It traps contaminants in solvents by using tap water or alkaline solution at atmospheric pressure and room temperature.
WhatsappOverview
GWS410 is the world’s first water-based solvent neutralizer designed primarily for spray dryers. It traps contaminants in solvents by using tap water or alkaline solution at atmospheric pressure and room temperature.
GWS410 is designed with a washing tank — when solvent vapor enters the tank, sprayed water adheres, cleans and neutralizes solvent particles, before returning to the bottom of the chamber.
Features
- Solvent washing unit uses water or alkaline solution
- Eliminates harsh solvents
- Minimizes equipment rust and corrosion
- Simple operation
- Easy maintenance — only requires monitoring of water’s pH level in the storage tank and condition of molecular sieves
Specifications
| MODEL | GWS410 | |
|---|---|---|
| Method | Spraying circulation | |
| Circulating Liquid | Water | |
| Circulating Pump | Small magnetic force circulating pump | |
| Max. Flow | 15L / min | |
| Max. Head | 8m | |
| Harmful Gas Washing Method | Pall ring filling + water spray washing | |
| Water Storage Tank Capacity | 35L | |
| Safety Device | Earth leakage breaker | |
| Power Source | AC200V 0.35A | |
| Exterior Dimension (WxDxH)* | 800×500×1230 mm | |
| Weight | Approx. 80kg | |
